HUAWEI Modules

Huawei SFP-25G-SR Original SFP28 Transceiver

Huawei SFP-25G-SR, Huawei original SFP28 module, 25GBASE-SR SFP28, 850nm 100m transceiver, SFP-25G-SR price, original Huawei optical module

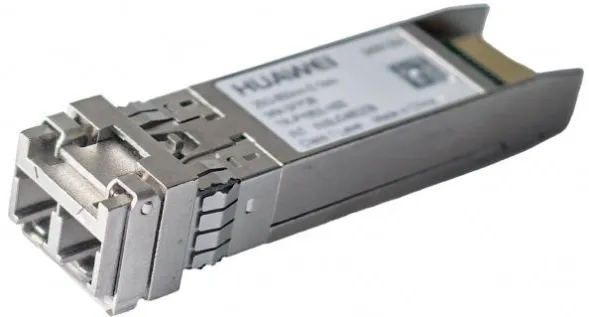

Huawei SFP-25G-SR Original SFP28 Transceiver – 25GBASE-SR Optical Module (MMF, 100m)

Product Overview

The Huawei SFP-25G-SR is a 100% genuine Huawei original module, a factory-sealed 25GBASE-SR SFP28 optical transceiver delivering 25 Gigabit connectivity over multimode fiber. With an 850 nm center wavelength and an LC connector, it provides reliable short-reach 25G links for enterprise and data center networks.

As a genuine OEM module, it is fully validated by Huawei for seamless interoperability, maximum stability and reliable operation in Huawei systems that specify the SFP-25G-SR.

Key Features of Huawei SFP-25G-SR

Genuine Huawei Original: Factory-original SFP-25G-SR module with full Huawei validation

25G SFP28 High-Speed Transmission: Supports data rates up to 25 Gbit/s (25GBASE-SR) for high-bandwidth enterprise links

Short-Reach (SR) Connectivity: Supports distances up to 70 m over OM3 (100 m over OM4) multimode fiber with an LC connector

Full DDM Support: Real-time digital diagnostics for optical power, temperature and voltage monitoring

Hot-Pluggable SFP28 Form Factor: Enables easy installation and maintenance without network interruption

850 nm Multimode Operation: Optimized for short-reach multimode fiber networks

Technical Specifications

Parameter	Specification
Model	SFP-25G-SR
Part Number	02311KNR
Form Factor	SFP28
Application Standard	25GBASE-SR
Data Rate	25 Gbit/s
Center Wavelength	850 nm
Fiber Type	Multimode fiber (MMF)
Transmission Distance	70 m over OM3 / 100 m over OM4 (BER 5x10^-5); 30 m over OM3 / 40 m over OM4 (BER 10^-12)
Connector Type	LC
Transmitter Optical Power	-8.4 to +2.4 dBm
Receiver Sensitivity	-10.3 dBm
Receiver Overload Power	+2.4 dBm
Extinction Ratio	≥ 2.0 dB
Digital Diagnostics (DDM)	Supported
Operating Temperature	0°C to 70°C

Why Choose an Original Huawei Module

Guaranteed Compatibility: Validated by Huawei for the SFP-25G-SR specification — no compatibility risks.

Full Feature Support: Complete DDM and firmware feature support on Huawei systems.

OEM Reliability: Factory quality control and lifecycle support for production networks.

Ready for Production: The safe choice for mission-critical enterprise and data center networks.

High-Value Application Scenarios

Data Center Interconnects

25G links within data center facilities up to 70 m over OM3 multimode fiber (100 m over OM4).

Enterprise Access and Aggregation

25G connections for Huawei enterprise switches and aggregation layers.

Campus Networks

Short-reach 25G transport over existing multimode fiber in campus buildings.

High-Density 25G Deployments

Reliable 25G SFP28 connectivity for high-density enterprise and data center racks.

Compatibility

This original module is designed and validated for Huawei systems that specify the SFP-25G-SR, including Huawei switches and network equipment with 25GBASE-SR SFP28 interfaces.

FAQ

Is the SFP-25G-SR a genuine Huawei module?

Yes. This is a 100% genuine Huawei original module, factory sealed and fully validated by Huawei for use in Huawei systems.

What distance does this module support?

It supports 25G links up to 70 m over OM3 multimode fiber (100 m over OM4) with an LC connector.

Which Huawei systems is it compatible with?

It is designed for Huawei systems that specify the SFP-25G-SR, including Huawei switches with 25GBASE-SR SFP28 interfaces.

Does it support DDM monitoring?

Yes. The module supports digital diagnostics (DDM) for real-time monitoring of optical power, temperature and voltage.

🚀 Get a Quote for Your 25G Deployment

Order the genuine Huawei SFP-25G-SR from CSW Optics. Send us your required quantity and deployment details.
