HUAWEI Switches

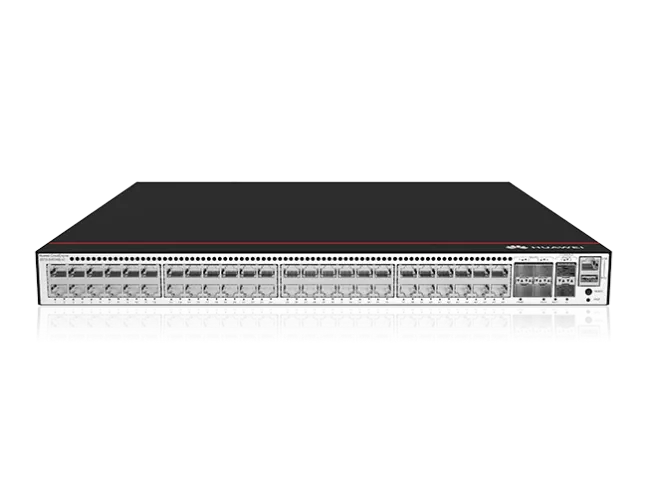

Huawei S5735-S48P4X-A Gigabit PoE Switch

Huawei S5735-S48P4X-A, CloudEngine S5735-S48P4X-A, 48 port gigabit PoE switch, Huawei PoE switch, S5735 price, enterprise network switch, original Huawei switch

Huawei S5735-S48P4X-A CloudEngine S5735-S Series 48-Port Gigabit PoE+ Switch with 4x 10GE SFP+ Uplinks

Factory-Sealed New in Original Box (FSB) with 1 Year Replacement Warranty

🔗 Product Overview

The Huawei S5735-S48P4X-A is a 48-port Gigabit Ethernet PoE+ switch from Huawei's CloudEngine S5735-S series. It delivers 176 Gbps switching capacity and a 132 Mpps forwarding rate, with 1600 W of PoE power for IP phones, cameras, and wireless access points, and 4 x 10GE SFP+ uplinks for high-speed aggregation connectivity.

👉 Ideal for campus networks, enterprise access layers, and branch office deployments.

🔥 Why This Switch Is in High Demand

✔ 48 x GE PoE+ ports power IP phones, cameras, and Wi-Fi access points

✔ 1600 W PoE power budget supports high-density powered devices

✔ 4 x 10GE SFP+ uplinks deliver high-speed aggregation connectivity

👉 S5735-S48P4X-A = high-density PoE+ access with 10GE uplinks for growing campus networks.

⚡ 1G Access vs PoE+ vs Uplink Options

Type	Access Ports	PoE	Uplink	Use Case
Standard Access Switch	48 x GE	No	4 x 10GE SFP+	Basic office connectivity
1G Access Switch (S5735-S48P4X-A)	48 x GE PoE+	Yes (1600 W)	4 x 10GE SFP+	Campus and branch access with powered devices
PoE+ Switch	48 x GE PoE+	Yes (1600 W)	4 x 10GE SFP+	IP phones, cameras and Wi-Fi

👉 Choose the PoE+ model when you need to power phones, cameras, and Wi-Fi access points over the same cabling that carries their data.

🧠 Key Features of Huawei S5735-S48P4X-A

48 x 10/100/1000BASE-T PoE+ ports for high-density powered device connectivity

4 x 10GE SFP+ uplinks for high-speed aggregation connectivity

176 Gbps switching capacity and 132 Mpps forwarding rate

1600 W PoE power budget for high-density powered devices

1U rack-mount form factor for standard 19-inch cabinets

Pluggable power modules with 1+1 redundancy for high availability

Wide operating temperature range from 0°C to +50°C

Centralized management through Huawei CloudEngine platform

Low maximum power consumption of 77 W without powered devices

Enterprise-grade reliability and security for campus networks

🏗️ High-Value Application Scenarios

✅ Campus Access

Power IP phones, cameras, and Wi-Fi access points directly from 48 PoE+ ports

Connect to aggregation switches over 4 x 10GE SFP+ uplinks

✅ Branch Office Networks

Serve small and remote offices with a single high-density PoE+ switch

Simplify deployment with centralized management and redundant power modules

✅ Enterprise Access Layer

Connect high-density PoE+ endpoints across enterprise floors and buildings

Manage the access layer centrally through the Huawei CloudEngine platform

💡 Why Choose S5735-S48P4X-A?

👉 Traditional switches:

Separate power injectors for phones, cameras, and Wi-Fi access points

Slow gigabit uplinks that bottleneck growing traffic

Manual configuration and limited redundancy options

👉 With S5735-S48P4X-A:

✔ 1600 W PoE+ budget powers all endpoints over one cable

✔ 4 x 10GE SFP+ uplinks remove aggregation bottlenecks

✔ 1+1 redundant pluggable power modules keep the network running

✔ Centralized CloudEngine management simplifies operations

✅ Best for campus, branch, and enterprise access layers with high-density PoE+ needs.

🧩 Complete Network Solution

✅ Access Layer

S5735-S48P4X-A provides 48 x GE PoE+ ports for powered endpoints at the access layer

✅ Uplink Connectivity

4 x 10GE SFP+ uplinks connect to aggregation switches with high-speed fiber links

✅ Aggregation/Core Layer

Pair with Huawei CloudEngine aggregation switches for a scalable campus core

✅ Architecture

Core-Aggregation-Access

Campus network

👉 A complete campus access solution: PoE+ endpoints, 10GE uplinks, and centralized CloudEngine management.

📊 Technical Specifications

Parameter	Specification
Model	Huawei S5735-S48P4X-A (CloudEngine S5735-S48P4X-A)
Ports	48 x 10/100/1000BASE-T Ethernet, PoE+
Uplinks	4 x 10GE SFP+
Switching Capacity	176 Gbps
Forwarding Rate	132 Mpps
Memory	1 GB
Flash	512 MB (306 MB available to users)
Form Factor	1U
Power Supply	Pluggable 600 W PoE AC / 1000 W PoE AC / 1000 W PoE DC, 1+1 redundancy, 100-130 V / 200-240 V AC, 50/60 Hz (max 77 W without powered devices / 1661 W with powered devices)
PoE Budget	1600 W (PD power)
Operating Temp	0°C to +50°C
Dimensions	43.6 mm x 442 mm x 420 mm
Weight (including packaging)	7.64 kg

❓ FAQ

Q1: What is the Huawei S5735-S48P4X-A used for?

It is a high-density gigabit PoE+ access switch for campus and branch networks, providing 48 PoE+ ports and 4 x 10GE SFP+ uplinks.

Q2: Does the S5735-S48P4X-A support PoE?

Yes, it provides 48 x GE PoE+ ports with a 1600 W PoE power budget for phones, cameras, and Wi-Fi access points.

Q3: What uplink ports does it have?

It has 4 x 10GE SFP+ ports for high-speed fiber connectivity to aggregation layers.

Q4: Is it suitable for enterprise networks?

Yes. It offers Layer 3 features, redundant pluggable power modules, and centralized CloudEngine management for enterprise networks.

📈
