HUAWEI Switches

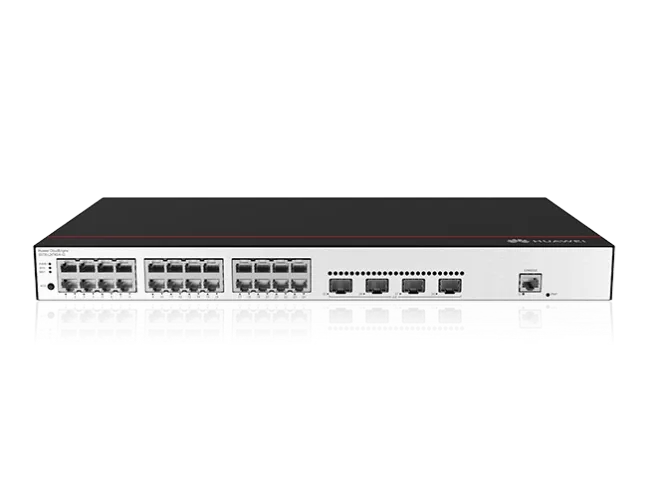

Huawei S5735-L24P4S-A1 Gigabit PoE Access Switch

Huawei S5735-L24P4S-A1, CloudEngine S5735-L24P4S-A1, 24 port gigabit PoE switch, Huawei PoE access switch, S5735 price, enterprise network switch, original Huawei switch

Huawei S5735-L24P4S-A1 CloudEngine S5735-L Series 24-Port Gigabit PoE+ Access Switch with 4x GE SFP Uplinks

Factory-Sealed New in Original Box (FSB) with 1 Year Replacement Warranty

🔗 Product Overview

The Huawei S5735-L24P4S-A1 is a 24-port Gigabit Ethernet PoE+ access switch from Huawei's CloudEngine S5735-L series, built for enterprise campus and branch networks that need reliable Gigabit connectivity with Power over Ethernet. It delivers 24 x 10/100/1000BASE-T PoE+ ports and 4 x GE SFP uplinks in a compact 1U chassis, with a 56 Gbps switching capacity and a 380 W PoE budget to power IP phones, wireless access points and IP cameras directly from the switch.

👉 Ideal for campus networks, enterprise access layers, and branch office deployments.

🔥 Why This Switch Is in High Demand

✔ 24 x Gigabit PoE+ ports power IP phones, wireless access points and IP cameras over a single cable, removing the need for separate power runs.

✔ A 380 W PoE budget supports a full floor of powered devices from one compact 1U switch.

✔ 4 x GE SFP uplinks give flexible fiber connectivity to the aggregation layer.

👉 S5735-L24P4S-A1 = Gigabit access + PoE+ power + fiber uplinks in one compact 1U switch.

⚡ 1G Access vs PoE+ vs Uplink Options

👉 In short, the S5735-L24P4S-A1 gives you PoE+ access and fiber uplinks in a single 1U switch.

🧠 Key Features of Huawei S5735-L24P4S-A1

24 x 10/100/1000BASE-T PoE+ ports deliver data and power over a single cable.

4 x GE SFP uplink ports provide flexible fiber connectivity to the aggregation layer.

56 Gbps switching capacity and 42 Mpps forwarding rate handle busy access-layer traffic.

380 W PoE budget powers IP phones, cameras and wireless access points at scale.

1U compact form factor fits standard 19-inch racks.

Built-in AC power supply.

Wide operating temperature range from -5°C to +50°C.

Huawei CloudEngine platform supports simplified management and intelligent network operations.

Energy-efficient design, max 53.2 W without powered devices.

Enterprise-grade reliability for campus networks, enterprise access layers and branch office deployments.

🏗️ High-Value Application Scenarios

Campus Access

24 PoE+ ports connect IP phones, cameras and wireless access points across a floor or building.

4 GE SFP uplinks tie each access switch back to the aggregation layer over fiber.

Branch Office Networks

One compact 1U switch delivers both data and power, cutting extra power injectors and cabling.

380 W PoE budget supports a full branch deployment of powered devices from a single switch.

Enterprise Access Layer

56 Gbps switching capacity keeps busy office traffic moving at wire speed.

Huawei CloudEngine management simplifies deployment and operations across many access switches.

💡 Why Choose S5735-L24P4S-A1?

👉 Traditional switches:

Separate data switches and power injectors add cost and cabling complexity.

Limited PoE budgets cannot power a full floor of devices from one switch.

Fixed copper uplinks restrict placement and distance to the aggregation layer.

👉 With S5735-L24P4S-A1:

✔ 24 PoE+ ports deliver data and power over a single cable.

✔ 380 W PoE budget powers phones, cameras and access points at scale.

✔ 4 GE SFP uplinks provide flexible fiber connectivity.

✔ 1U compact design fits standard racks and simplifies deployment.

✅ Best for campus networks, enterprise access layers and branch offices that need PoE+ access with fiber uplinks.

🧩 Complete Network Solution

✅ Access Layer

S5735-L24P4S-A1 provides 24 PoE+ access ports and 4 GE SFP uplinks for campus and branch access.

✅ Uplink Connectivity

4 GE SFP uplink ports connect the access layer to aggregation switches over fiber.

✅ Aggregation/Core Layer

Huawei aggregation and core switches link the access layer to the network core.

✅ Architecture

Core-Aggregation-Access

Campus network

👉 Together, these layers form a complete campus network built around the S5735-L24P4S-A1 access switch.

📊 Technical Specifications

Parameter	Specification
Model	Huawei S5735-L24P4S-A1 (CloudEngine S5735-L24P4S-A1)
Ports	24 x 10/100/1000BASE-T Ethernet, PoE+
Uplinks	4 x GE SFP
Switching Capacity	56 Gbps
Forwarding Rate	42 Mpps
Memory	512 MB
Flash	512 MB (306 MB available to users)
Form Factor	1U
Power Supply	Built-in AC, 100-240 V AC, 50/60 Hz (max 53.2 W without powered devices / 433.2 W with powered devices)
PoE Budget	380 W
Operating Temp	-5°C to +50°C
Dimensions	43.6 mm x 442 mm x 220 mm
Weight (including packaging)	3.91 kg

❓ FAQ

Q1: What is the Huawei S5735-L24P4S-A1 used for?

It is a 24-port Gigabit PoE+ access switch for campus and branch networks, providing data and power over a single cable to IP phones, cameras and wireless access points.

Q2: Does the S5735-L24P4S-A1 support PoE?

Yes, all 24 Gigabit ports support PoE+ with a 380 W PoE budget.

Q3: What uplink ports does it have?

It has 4 x GE SFP ports for flexible fiber connectivity to aggregation layers.

Q4: Is it suitable for enterprise networks?

Yes. It offers 56 Gbps switching capacity, enterprise-grade reliability and simplified CloudEngine management for enterprise access layers.

📈
