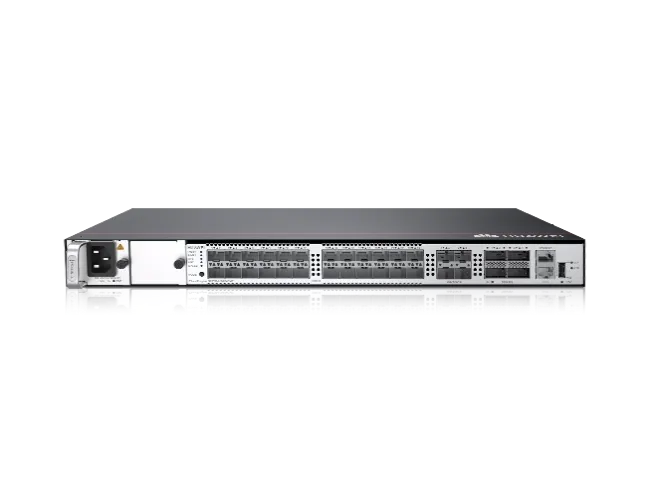

Huawei CloudEngine S6730-H24X6C 10G Aggregation Switch
Huawei S6730-H24X6C, CloudEngine S6730-H24X6C, 24 port 10G switch, Huawei aggregation switch, S6730-H24X6C price, enterprise network switch, original Huawei switch
Huawei S6730-H24X6C CloudEngine S6730-H Series 24-Port 10G Aggregation Switch with 6x 40/100G Uplinks
Factory-Sealed New in Original Box (FSB) with 1 Year Replacement Warranty
Product Overview
The Huawei CloudEngine S6730-H24X6C is a next-generation enterprise-class aggregation switch from the CloudEngine S6730-H series. It provides 24 x 10GE SFP+ ports and 6 x 40/100GE QSFP28 uplinks, delivering high-density 10G access with flexible high-speed uplinks for enterprise campuses, colleges and universities, and data center access layers. Built on Huawei VRP with VXLAN, BGP-EVPN and cloud management, it combines high performance, strong security and intelligent operations in a compact 1U design.
Why This Switch Is in High Demand
Campus networks are moving to 10G at the access layer, and aggregation switches must keep pace without overspending on 25G or 100G ports that are not yet needed. The S6730-H24X6C hits that sweet spot: 24 high-density 10GE ports for access aggregation, plus 6 uplinks that run at 40GE today and can be upgraded to 100GE with a license, protecting the investment as bandwidth grows. VXLAN, EVPN and cloud management make it ready for modern, automated campus and data center networks.
10G Aggregation vs 1G Access vs 25G/100G Options
1G access switches are fine for basic connectivity, but they bottleneck modern Wi-Fi, servers and storage. 25G and 100G switches offer more headroom, yet they cost more and are often unnecessary at the aggregation layer. The S6730-H24X6C balances both: 10G where it matters, with 40G uplinks that can grow to 100G, so you pay for the capacity you need today and keep a clear upgrade path.
Key Features
- 24 x 10GE SFP+ ports for high-density 10G aggregation
- 6 x 40/100GE QSFP28 uplinks, upgradable to 100GE with a license
Additional highlights include switching capacity up to 2.4 Tbit/s with 490 Mpps forwarding, VXLAN centralized and distributed gateways with BGP-EVPN, cloud management, intelligent O&M with telemetry, and dual pluggable power supplies with 1+1 backup for high availability.
High-Value Application Scenarios
Enterprise Campus Aggregation: aggregate 10G access switches in large campuses and connect them to the core over 40G uplinks. Data Center Access: provide high-density 10G server and storage access with flexible 40/100G uplinks to the data center core. Education and Enterprise Networks: support classrooms, offices and research networks with reliable, secure and easily managed 10G aggregation.
Why Choose This Switch
Choose the S6730-H24X6C for the right balance of density, speed and future-proofing. You get genuine Huawei quality with a factory-sealed unit and a 1 year replacement warranty, 24 high-density 10GE ports, uplinks that scale from 40GE to 100GE, and dual pluggable power supplies for high availability. It is an enterprise-class switch at an aggregation-layer price point, backed by the support and availability you need for campus and data center projects.
Complete Network Solution
Access Layer: connect access switches, Wi-Fi access points and endpoints at 10G. Uplink Connectivity: use the 6 x 40/100GE QSFP28 uplinks for high-speed, redundant links to the core. Aggregation-Core Layer: deploy the S6730-H24X6C as the aggregation switch that ties access layers together and feeds the campus or data center core, with VXLAN and EVPN for modern virtualized networks.
Technical Specifications
Parameter | Specification |
Model | Huawei CloudEngine S6730-H24X6C |
Ports | 24 x 10 GE SFP+ |
Uplinks | 6 x 40/100 GE QSFP28 |
Switching Capacity | 1.68 Tbit/s/2.4 Tbit/s |
Forwarding Performance | 490 Mpps |
VXLAN | VXLAN L2 and L3 gateways, centralized and distributed gateways, BGP-EVPN, configured through NETCONF |
Memory | 4 GB |
Flash | Hardware: 2 GB |
Form Factor | 1U |
Power Supply | 600 W AC (pluggable) / 1000 W DC (pluggable) |
Dimensions | 43.6 mm x 442.0 mm x 420.0 mm |
Weight | 8.9 kg (19.62 lb) |
FAQ
Q: How many 10G ports does the S6730-H24X6C provide? A: 24 x 10GE SFP+ ports plus 6 x 40/100GE QSFP28 uplinks, upgradable to 100GE with an RTU license. Q: What are the switching capacity and forwarding performance? A: 1.68 Tbit/s, up to 2.4 Tbit/s, and 490 Mpps. Q: What is the form factor? A: 1U rack-mount. Q: Is this switch factory-sealed? A: Yes, it is factory-sealed new in its original box with a 1-year replacement warranty.
