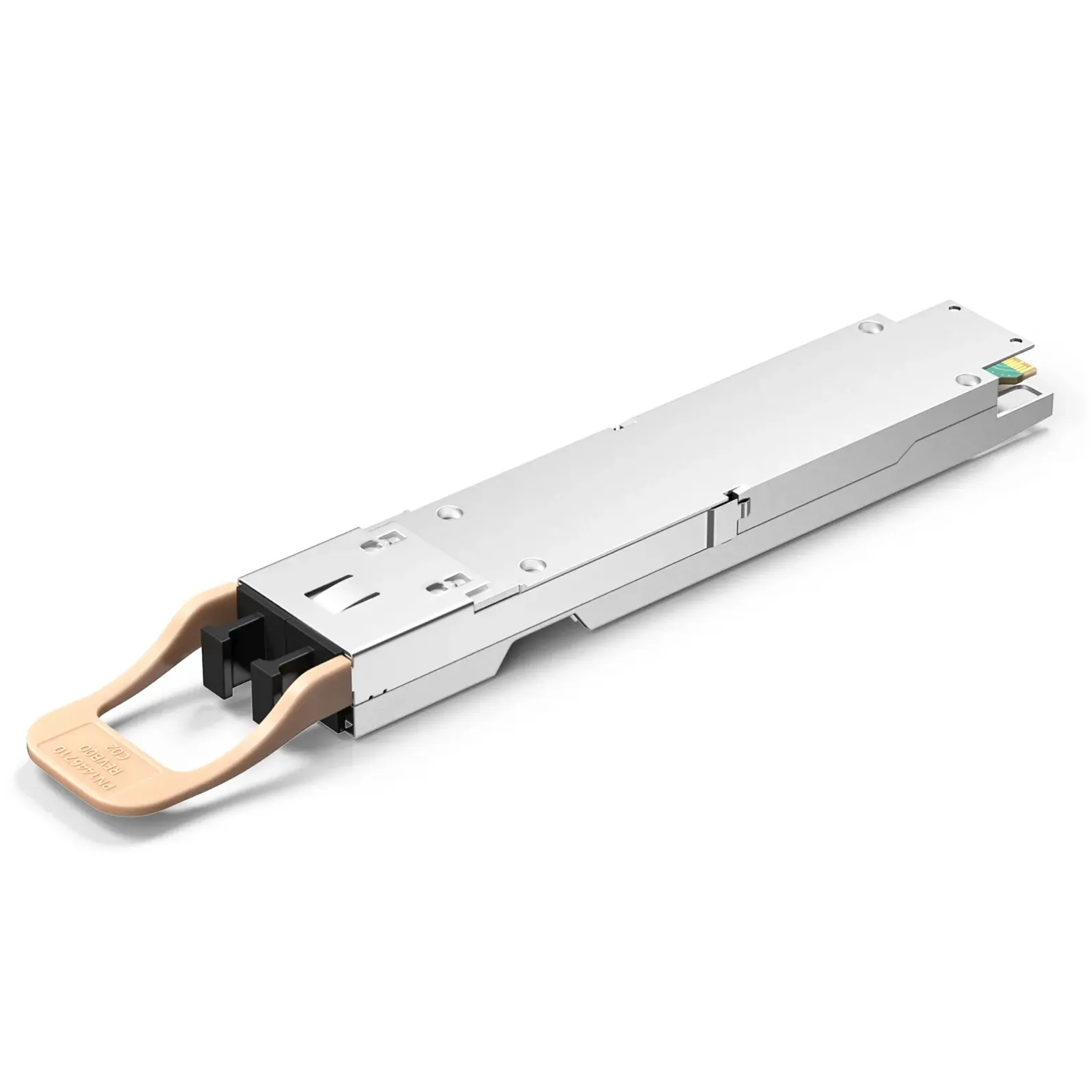

Cisco OSFP-800G-VR8 Compatible Transceiver
OSFP-800G-VR8 Compatible, Cisco compatible optical module, 800GBASE-VR8 OSFP for Cisco, 850nm 50m transceiver for Cisco Nexus 9000 OSFP800 platforms
Cisco OSFP-800G-VR8 Compatible Transceiver
Product Overview
The OSFP-800G-VR8 Compatible is a Cisco compatible optical module that delivers 800Gbps over multimode fiber.
Key Features
- 800Gbps 800GBASE-VR8 OSFP performance
- 850nm parallel optics over multimode fiber
- Dual MPO-12 connectors, up to 50m on OM4
- DOM support and hot-swappable design
- Power consumption under 16W
- Tested for Cisco Nexus 9000 OSFP800 platforms
Technical Specifications
Parameter | Specification |
Model | OSFP-800G-VR8 Compatible |
Form Factor | OSFP |
Data Rate | 800Gbps |
Optical Standard | 800GBASE-VR8 |
Optical Technology | Parallel Optics |
Fiber Type | Multimode Fiber (MMF) |
Wavelength | 850nm |
Max Distance | 50m (OM4) |
Connector Type | Dual MPO-12 |
DOM Support | Yes |
Power Consumption | < 16W |
Hot Swappable | Yes |
Operating Temperature | 0°C to 70°C |
Compliance | IEEE 802.3ck, OSFP MSA, RoHS |
Compatibility | Cisco Nexus 9000 series switches with OSFP800 ports |
Why Choose This Cisco Compatible OSFP-800G-VR8 Module?
This Cisco compatible module delivers full 800G performance at a lower cost than the original.
- Full 800Gbps throughput for demanding data-center links
- Tested for error-free operation on Cisco Nexus 9000 OSFP800 platforms
- Hot-swappable design for fast maintenance
High-Value Application Scenarios
- AI training clusters and GPU interconnects
- Spine-leaf data-center fabrics at 800G
- High-density 800G switching and cloud-scale networks
Compatibility
This module is designed for Cisco Nexus 9000 series switches with OSFP800 ports.
FAQ
What data rate does this module support?
It supports 800Gbps over multimode fiber using 800GBASE-VR8 parallel optics.
Which Cisco platforms is it compatible with?
It is compatible with Cisco Nexus 9000 series switches with OSFP800 ports.
What is the maximum reach?
Up to 50 meters on OM4 multimode fiber.
