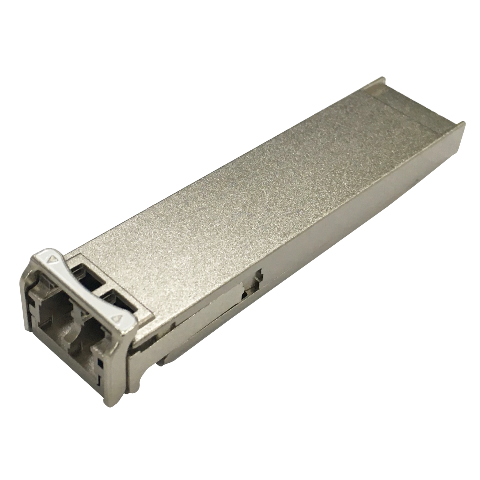

Cisco Compatible XFP-10GZR-OC192LR Optical Transceiver | 10GBASE-ZR / OC-192 LR-2, LC Duplex, SMF (80km)
Product Overview
The Cisco Compatible XFP-10GZR-OC192LR Optical Transceiver is a high-performance 10Gbps XFP module designed for ultra-long-distance transmission over single-mode fiber (SMF). It supports both 10 Gigabit Ethernet (10GBASE-ZR) and SONET/SDH OC-192 / STM-64 LR-2 applications, operating at a 1550nm wavelength with transmission distances of up to 80 kilometers.
This dual-rate, multi-protocol module is ideal for telecom operators, long-haul backbone networks, and data center interconnect (DCI) deployments. Fully compatible with Cisco platforms, it delivers reliable performance and a cost-effective alternative to OEM optics.
Key Features
- Supports 10GBASE-ZR Ethernet and OC-192 / STM-64 LR-2
- Dual-rate operation for multi-protocol networks
- 1550nm EML laser for ultra-long-distance SMF transmission
- Up to 80km transmission distance
- LC duplex connector interface
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- High optical power and sensitivity for long-haul links
- MSA compliant and fully tested
Technical Specifications
General Parameters
- 10.3125 Gbps (10G Ethernet)
- 9.953 Gbps (OC-192 / STM-64)
- Transmission Distance: Up to 80km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: EML (Electro-absorption Modulated Laser)
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -23 dBm
Electrical & Environmental
- Power Consumption: ≤ 4.0W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
- ITU-T G.691 / G.959.1 compliant (SONET/SDH)
- Compatible with Cisco XFP platforms
Applications
- Long-haul telecom backbone networks
- SONET/SDH OC-192 / STM-64 LR-2 systems
- Data Center Interconnect (DCI) over long distances
- Metropolitan and regional optical networks
- High-capacity enterprise backbone links
Important Notes
- 10GBASE-ZR is not part of IEEE 802.3ae, but is widely used as an industry-standard extension for long-distance transmission.
- For links approaching 80km, proper optical link budget planning is essential. In some cases, additional components such as:
- Optical amplifiers (EDFA)
- Dispersion Compensation Modules (DCM)
may be required depending on fiber conditions.
Why Choose This Product
The Cisco-compatible XFP-10GZR-OC192LR module is engineered for ultra-long-distance, high-reliability networks. It offers:
- Dual-protocol support (Ethernet + SONET/SDH)
- Extended reach up to 80km
- Stable performance for mission-critical applications
- Cost-effective alternative to OEM optics
It is ideal for telecom operators and large-scale network infrastructures.
When to Choose This Module
Choose XFP-10GZR-OC192LR if:
✔ Distance requirement is up to 80km
✔ Need both Ethernet and SONET/SDH compatibility
✔ Operating in long-haul or telecom environments
✔ Using single-mode fiber (SMF)
Choose ER / IR-2 modules if:
✔ Distance requirement is ≤40km
✔ Lower power consumption is preferred
