Cisco Compatible XFP-10GER-OC192IR Optical Transceiver | 10GBASE-ER / OC-192 IR-2, LC Duplex, SMF (40km)
Product Overview

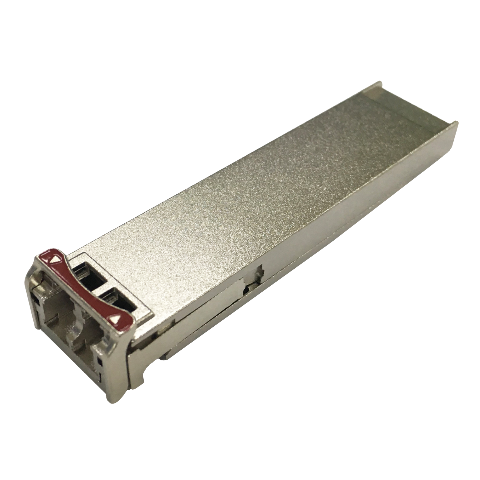

The Cisco Compatible XFP-10GER-OC192IR Optical Transceiver is a high-performance 10Gbps XFP module designed to support both 10 Gigabit Ethernet (10GBASE-ER) and SONET/SDH OC-192 / STM-64 IR-2 applications. Operating at a 1550nm wavelength, it enables transmission distances of up to 40 kilometers over single-mode fiber (SMF).
This dual-rate, multi-protocol transceiver is ideal for telecom operators, metropolitan networks, and enterprise environments that require seamless integration between Ethernet and SONET/SDH systems. Fully compatible with Cisco platforms, it provides reliable long-distance performance and a cost-effective alternative to OEM optics.
Key Features
- Supports 10GBASE-ER Ethernet and OC-192 / STM-64 IR-2
- Dual-rate operation for multi-protocol networks
- 1550nm EML laser for long-distance SMF transmission
- Up to 40km transmission distance over SMF
- LC duplex connector interface
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- High reliability and stable optical performance
- MSA compliant and fully tested
Technical Specifications
General Parameters
- 10.3125 Gbps (10G Ethernet)
- 9.953 Gbps (OC-192 / STM-64)
- Transmission Distance: Up to 40km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: EML (Electro-absorption Modulated Laser)
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -15.8 dBm
Electrical & Environmental
- Power Consumption: ≤ 3.5W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
- IEEE 802.3ae (10GBASE-ER)
- ITU-T G.691 / G.959.1 compliant (SONET/SDH)
Applications
- Telecom and service provider networks
- SONET/SDH OC-192 / STM-64 infrastructure
- Metropolitan Area Networks (MAN)
- Long-distance enterprise backbone connections
- Multi-protocol transport platforms
Why Choose This Product
The Cisco-compatible XFP-10GER-OC192IR module is designed for long-distance, high-reliability networks that require both Ethernet and SONET/SDH compatibility. It offers:
- Dual-protocol flexibility (Ethernet + telecom)
- Extended reach up to 40km
- Seamless Cisco interoperability
- Cost-effective alternative to OEM modules
It is an ideal solution for hybrid networks where data and telecom systems converge.
When to Choose This Module
Choose XFP-10GER-OC192IR if:
✔ Need both Ethernet and SONET/SDH support
✔ Distance is up to 40km
✔ Using single-mode fiber (SMF)
✔ Deploying in telecom or metro networks
Choose LR or IR-1 modules if:
✔ Distance requirement is ≤10km
✔ Lower power and cost are preferred
