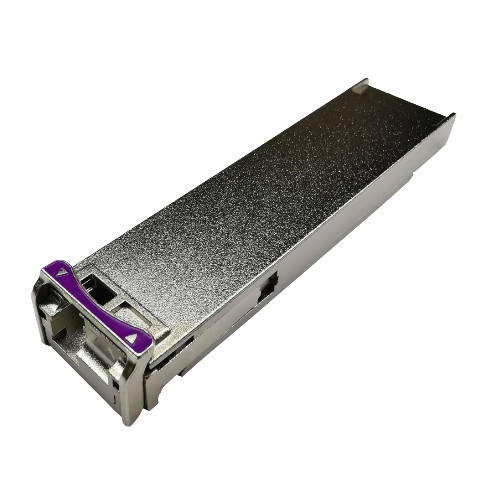

Cisco Compatible XFP-10GBX-U-1490-80 BiDi Optical Transceiver | 10GBASE-BX, 1490nm-TX/1550nm-RX, LC Simplex, SMF (80km)
Product Overview
The Cisco Compatible XFP-10GBX-U-1490-80 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for ultra-long-distance single-fiber (BiDi) communication over single-mode fiber (SMF). Using advanced Wavelength Division Multiplexing (WDM) technology, it operates with a 1490nm transmitter and 1550nm receiver, enabling bidirectional data transmission over a single fiber strand.
With a transmission distance of up to 80 kilometers, this module is ideal for metro core networks, regional backbone links, and data center interconnect (DCI) applications where both maximum reach and fiber efficiency are critical. Fully compatible with Cisco platforms, it provides a cost-effective and scalable alternative to traditional dual-fiber long-haul optics.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 80km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- Optimized for ultra-long-distance transmission
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1490nm / RX 1550nm
- Transmission Distance: Up to 80km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -23 dBm
Electrical & Environmental
- Power Consumption: ≤ 4.0W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
Applications
- Metro core and regional backbone networks
- Long-distance telecom infrastructure
- Data center interconnect (DCI)
- Carrier-grade transport networks
- High-capacity enterprise WAN links
Pairing Note (Important)
This module must be used with its complementary BiDi transceiver:
- XFP-10GBX-U-1490-80 (TX1490/RX1550)
⬌ paired with
- XFP-10GBX-D-1550-80 (TX1550/RX1490)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-U-1490-80 module is designed for ultra-long-haul, fiber-efficient networks. Compared to standard dual-fiber solutions, it offers:
- 50% reduction in fiber usage
- Lower infrastructure and deployment cost
- Extended reach up to 80km
- Stable performance for carrier-grade networks
It is ideal for operators who require maximum distance without sacrificing fiber efficiency.
When to Choose This Module
Choose XFP-10GBX-U-1490-80 if:
✔ Fiber resources are limited
✔ Distance requirement is up to 80km
✔ Want to reduce cabling and deployment cost
✔ Using single-mode fiber (SMF)
Choose ZR dual-fiber modules if:
✔ Simpler architecture is preferred
✔ Fiber is not constrained
