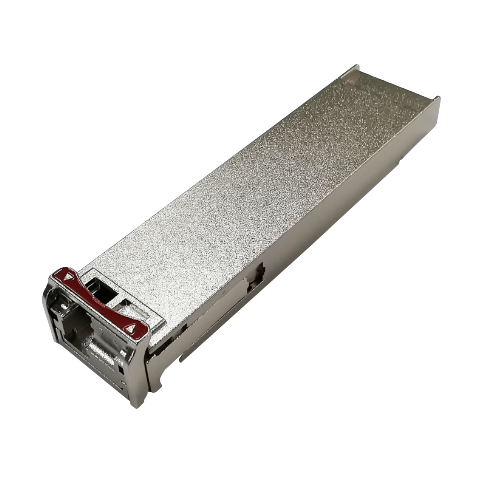

Cisco Compatible XFP-10GBX-U-1270-60 BiDi Optical Transceiver | 10GBASE-BX, 1270nm-TX/1330nm-RX, LC Simplex, SMF (60km)
Product Overview
The Cisco Compatible XFP-10GBX-U-1270-60 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for extended long-distance single-fiber (BiDi) communication over single-mode fiber (SMF). Utilizing advanced Wavelength Division Multiplexing (WDM) technology, it operates with a 1270nm transmitter and 1330nm receiver, enabling bidirectional data transmission over a single fiber strand.
With a transmission distance of up to 60 kilometers, this module is ideal for metro, regional, and telecom backbone networks where both fiber efficiency and extended reach are required. Fully compatible with Cisco platforms, it delivers reliable performance and a cost-effective alternative to traditional dual-fiber optics.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 60km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- Optimized for extended long-distance transmission
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1270nm / RX 1330nm
- Transmission Distance: Up to 60km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -22 dBm
Electrical & Environmental
- Power Consumption: ≤ 4.0W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
Applications
- Metro and regional optical networks
- Telecom backbone infrastructure
- Data center interconnect (DCI) over long distance
- Enterprise WAN and backbone connectivity
- Fiber-limited long-distance deployments
Pairing Note (Important)
This module must be used with the complementary BiDi transceiver:
- XFP-10GBX-U-1270-60 (TX1270/RX1330)
⬌ paired with
- XFP-10GBX-D-1330-60 (TX1330/RX1270)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-U-1270-60 module is designed for extended long-distance, fiber-efficient networks. Compared to standard dual-fiber solutions, it offers:
- Reduced infrastructure and deployment costs
- Extended reach up to 60km
- Stable performance for metro and backbone networks
It is ideal for networks where both distance and fiber optimization are critical.
When to Choose This Module
Choose XFP-10GBX-U-1270-60 if:
✔ Fiber resources are limited
✔ Distance requirement is up to 60km
✔ Want to reduce cabling cost
✔ Using single-mode fiber (SMF)
Choose ZR or DWDM modules if:
✔ Distance exceeds 60km
✔ Higher optical budget or amplification is required
