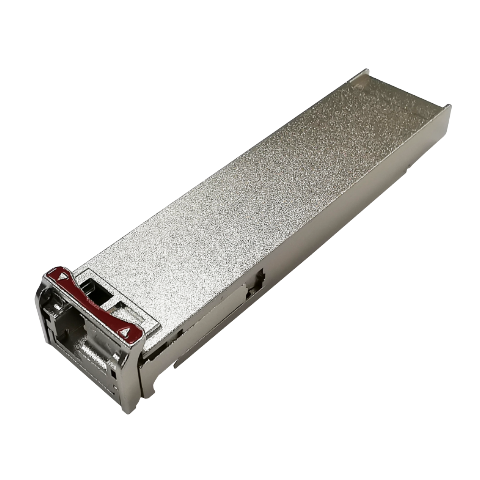

Cisco Compatible XFP-10GBX-U-1270-40 BiDi Optical Transceiver | 10GBASE-BX, 1270nm-TX/1330nm-RX, LC Simplex, SMF (40km)
Product Overview
The Cisco Compatible XFP-10GBX-U-1270-40 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for long-distance single-fiber (BiDi) communication over single-mode fiber (SMF). Utilizing advanced Wavelength Division Multiplexing (WDM) technology, it operates with a 1270nm transmitter and 1330nm receiver, enabling bidirectional data transmission over a single fiber strand.
With an extended transmission distance of up to 40 kilometers, this module is ideal for metro networks, telecom access infrastructure, and enterprise backbones where fiber resources are limited but longer reach is required. Fully compatible with Cisco platforms, it offers a reliable and cost-efficient alternative to traditional dual-fiber optics.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 40km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- Optimized for long-distance transmission
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1270nm / RX 1330nm
- Transmission Distance: Up to 40km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -20 dBm
Electrical & Environmental
- Power Consumption: ≤ 3.5W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
Applications
- Metro and access networks
- Data center interconnect (DCI)
- Enterprise backbone networks
- Fiber-constrained long-distance links
Pairing Note (Important)
This module must be used with the complementary BiDi transceiver:
- XFP-10GBX-U-1270-40 (TX1270/RX1330)
⬌ paired with
- XFP-10GBX-D-1330-40 (TX1330/RX1270)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-U-1270-40 module is designed for long-distance, fiber-efficient deployments. Compared to standard dual-fiber modules, it offers:
- Reduced infrastructure cost
- Extended reach up to 40km
- Reliable performance in metro and telecom environments
It is ideal for networks where both distance and fiber efficiency are critical.
When to Choose This Module
Choose XFP-10GBX-U-1270-40 if:
✔ Fiber resources are limited
✔ Distance requirement is up to 40km
✔ Want to reduce cabling cost
✔ Using single-mode fiber (SMF)
Choose dual-fiber ER modules if:
✔ Fiber is sufficient
✔ Simpler link planning is preferred
