Cisco Compatible XFP-10GBX-U-1270 | 10G BiDi XFP 1270/1330nm 20km

Cisco Compatible XFP-10GBX-U-1270 BiDi Optical Transceiver | 10GBASE-BX, 1270nm-TX/1330nm-RX, LC Simplex, SMF (20km)

Product Overview

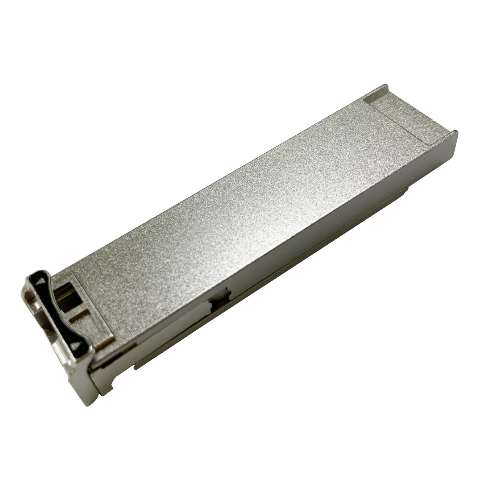

The Cisco Compatible XFP-10GBX-U-1270 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for single-fiber (BiDi) communication over single-mode fiber (SMF). Using Wavelength Division Multiplexing (WDM) technology, it operates with a 1270nm transmitter and 1330nm receiver, enabling bidirectional data transmission over a single fiber strand.

With a transmission distance of up to 20 kilometers, this module is ideal for data centers, enterprise networks, and telecom access networks where fiber resources are limited. Fully compatible with Cisco platforms, it provides a cost-effective and fiber-efficient alternative to traditional dual-fiber transceivers.

Key Features

Supports 10Gbps data rate (10GBASE-BX)

BiDi single-fiber transmission (WDM technology)

TX: 1270nm / RX: 1330nm

Up to 20km transmission over SMF

LC simplex connector

Fully compatible with Cisco XFP ports

Hot-pluggable XFP form factor

Reduces fiber usage by 50%

MSA compliant and fully tested

Technical Specifications

General Parameters

Form Factor: XFP

Data Rate: 10Gbps

Wavelength: TX 1270nm / RX 1330nm

Transmission Distance: Up to 20km

Connector: LC Simplex

Fiber Type: Single-Mode Fiber (SMF)

Optical Characteristics

Transmitter Type: DFB Laser

Receiver Type: PIN Photodiode

TX Power: -8 ~ +0.5 dBm

RX Sensitivity: ≤ -14 dBm

Electrical & Environmental

Power Consumption: ≤ 3.5W

Operating Temperature: 0°C to 70°C

Storage Temperature: -40°C to 85°C

Compliance

IEEE 802.3ae (10GBASE-BX)

XFP MSA compliant

RoHS compliant

Applications

Fiber-limited network environments

Data center interconnects (DCI)

Enterprise access networks

Telecom access and aggregation networks

Metro and campus networks

Pairing Note (Important)

This module must be used with a complementary BiDi transceiver:

XFP-10GBX-U-1270 (TX1270/RX1330) ⬌ paired with

XFP-10GBX-D-1330 (TX1330/RX1270)

Both modules are required to establish a full duplex link over a single fiber.

Why Choose This Product

The Cisco-compatible XFP-10GBX-U-1270 module is ideal for optimizing fiber infrastructure. Compared to standard dual-fiber modules, it offers:

50% fiber savings

Lower cabling costs

Efficient use of existing fiber resources

Reliable performance for 10G networks

It is widely used in environments where fiber availability is limited or expensive.

When to Choose This Module

Choose XFP-10GBX-U-1270 if:

✔ Fiber resources are limited ✔ Want to reduce cabling cost ✔ Distance requirement is within 20km ✔ Using single-mode fiber (SMF)

Choose standard LR modules if:

✔ Dual-fiber infrastructure is available ✔ Simpler deployment is preferred
