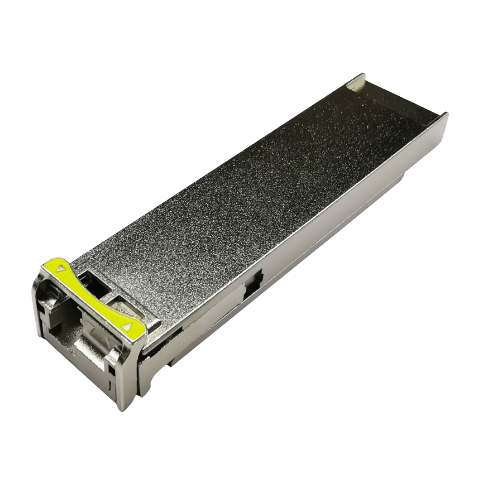

Cisco Compatible XFP-10GBX-D-1550-80 BiDi Optical Transceiver | 10GBASE-BX, 1550nm-TX/1490nm-RX, LC Simplex, SMF (80km)
Product Overview
The Cisco Compatible XFP-10GBX-D-1550-80 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for ultra-long-distance single-fiber (BiDi) transmission over single-mode fiber (SMF). Using advanced Wavelength Division Multiplexing (WDM) technology, it operates with a 1550nm transmitter and 1490nm receiver, enabling full-duplex communication over a single fiber strand.
With a reach of up to 80 kilometers, this module is ideal for metro core networks, telecom backbone infrastructure, and data center interconnect (DCI) applications where both maximum distance and fiber efficiency are required. Fully compatible with Cisco platforms, it delivers stable, carrier-grade performance as a cost-effective alternative to OEM optics.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 80km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- Optimized for ultra-long-haul transmission
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1550nm / RX 1490nm
- Transmission Distance: Up to 80km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -23 dBm
Electrical & Environmental
- Power Consumption: ≤ 4.0W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
Applications
- Metro core and regional backbone networks
- Telecom carrier infrastructure
- Data center interconnect (DCI)
- Long-haul optical transport networks
- High-capacity enterprise WAN links
Pairing Note (Important)
This module must be used with its complementary BiDi transceiver:
- XFP-10GBX-D-1550-80 (TX1550/RX1490)
⬌ paired with
- XFP-10GBX-U-1490-80 (TX1490/RX1550)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-D-1550-80 module is designed for carrier-grade, ultra-long-distance networks. Compared to traditional dual-fiber optics, it offers:
- 50% reduction in fiber usage
- Lower deployment and infrastructure cost
- Extended reach up to 80km
- Stable performance for backbone and metro networks
It is ideal for operators requiring maximum transmission distance with optimized fiber utilization.
When to Choose This Module
Choose XFP-10GBX-D-1550-80 if:
✔ Fiber resources are limited
✔ Distance requirement is up to 80km
✔ Want to reduce cabling cost
✔ Using single-mode fiber (SMF)
Choose ZR dual-fiber modules if:
✔ Simpler deployment is preferred
✔ Fiber availability is not constrained
