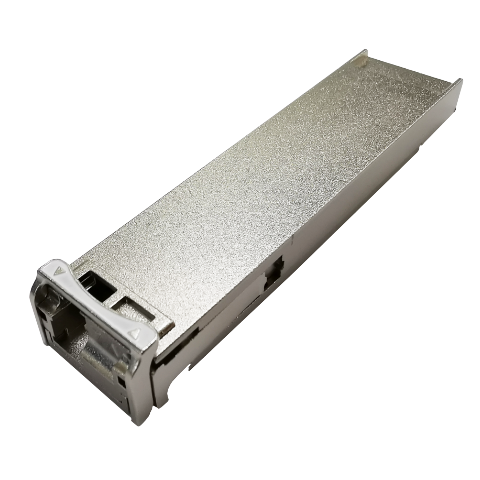

Cisco Compatible XFP-10GBX-D-1330-60 BiDi Optical Transceiver | 10GBASE-BX, 1330nm-TX/1270nm-RX, LC Simplex, SMF (60km)
Product Overview
The Cisco Compatible XFP-10GBX-D-1330-60 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for extended long-distance single-fiber (BiDi) communication over single-mode fiber (SMF). Using advanced Wavelength Division Multiplexing (WDM) technology, it operates with a 1330nm transmitter and 1270nm receiver, enabling full-duplex transmission over a single fiber strand.
With a reach of up to 60 kilometers, this module is ideal for metro, regional, and telecom backbone networks where fiber efficiency and long-distance connectivity are both required. Fully compatible with Cisco platforms, it offers a cost-effective and scalable alternative to traditional dual-fiber optics.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 60km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- Optimized for long-haul transmission
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1330nm / RX 1270nm
- Transmission Distance: Up to 60km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: APD Photodiode
- RX Sensitivity: ≤ -22 dBm
Electrical & Environmental
- Power Consumption: ≤ 4.0W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
Applications
- Metro and regional optical networks
- Telecom backbone infrastructure
- Data center interconnect (DCI)
- Enterprise WAN connectivity
- Long-distance access networks
Pairing Note (Important)
This module must be used with its complementary BiDi transceiver:
- XFP-10GBX-D-1330-60 (TX1330/RX1270)
⬌ paired with
- XFP-10GBX-U-1270-60 (TX1270/RX1330)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-D-1330-60 module is engineered for long-distance, fiber-efficient deployments. Compared to standard dual-fiber solutions, it provides:
- 50% reduction in fiber usage
- Lower infrastructure and deployment costs
- Extended reach up to 60km
- Stable and reliable performance in metro/backbone networks
It is ideal for operators seeking to optimize both distance and fiber resources.
When to Choose This Module
Choose XFP-10GBX-D-1330-60 if:
✔ Fiber resources are limited
✔ Distance requirement is up to 60km
✔ Want to reduce cabling cost
✔ Using single-mode fiber (SMF)
Choose ZR or DWDM modules if:
✔ Distance exceeds 60km
✔ Optical amplification or higher budget is required
