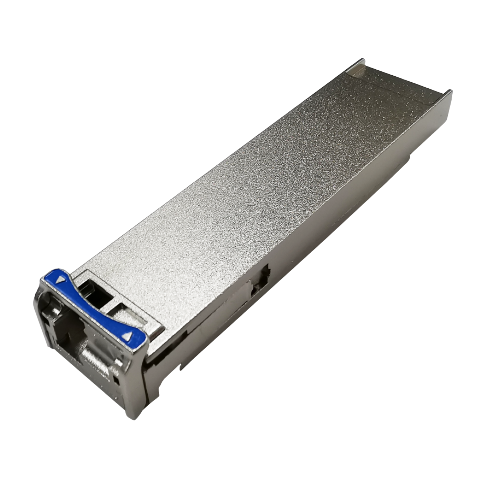

Cisco Compatible XFP-10GBX-D-1330 BiDi Optical Transceiver | 10GBASE-BX, 1330nm-TX/1270nm-RX, LC Simplex, SMF (20km)
Product Overview
The Cisco Compatible XFP-10GBX-D-1330 BiDi Optical Transceiver is a high-performance 10Gbps XFP module designed for single-fiber (BiDi) communication over single-mode fiber (SMF). Utilizing Wavelength Division Multiplexing (WDM) technology, it operates with a 1330nm transmitter and 1270nm receiver, enabling bidirectional transmission over a single fiber strand.
With a reach of up to 20 kilometers, this module is ideal for enterprise, data center, and telecom access networks where fiber resources are limited. Fully compatible with Cisco platforms, it provides a reliable and cost-effective alternative to standard dual-fiber transceivers.
Key Features
- Supports 10Gbps data rate (10GBASE-BX)
- BiDi single-fiber transmission (WDM technology)
- Up to 20km transmission over SMF
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Reduces fiber usage by 50%
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Wavelength: TX 1330nm / RX 1270nm
- Transmission Distance: Up to 20km
- Fiber Type: Single-Mode Fiber (SMF)
Optical Characteristics
- Transmitter Type: DFB Laser
- Receiver Type: PIN Photodiode
- RX Sensitivity: ≤ -14 dBm
Electrical & Environmental
- Power Consumption: ≤ 3.5W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
- IEEE 802.3ae (10GBASE-BX)
Applications
- Fiber-limited network environments
- Enterprise access networks
- Data center interconnects (DCI)
- Telecom access and aggregation networks
- Campus and metro networks
Pairing Note (Important)
This module must be used with its complementary BiDi transceiver:
- XFP-10GBX-D-1330 (TX1330/RX1270)
⬌ paired with
- XFP-10GBX-U-1270 (TX1270/RX1330)
Both modules are required to establish a full-duplex link over a single fiber.
Why Choose This Product
The Cisco-compatible XFP-10GBX-D-1330 module is designed to maximize fiber efficiency. Compared to traditional dual-fiber modules, it offers:
- 50% reduction in fiber usage
- Lower infrastructure and cabling costs
- Efficient deployment in fiber-constrained environments
- Stable and reliable 10G performance
It is widely deployed in networks where optimizing fiber resources is critical.
When to Choose This Module
Choose XFP-10GBX-D-1330 if:
✔ Fiber availability is limited
✔ Want to reduce deployment cost
✔ Distance requirement is within 20km
✔ Using single-mode fiber (SMF)
Choose dual-fiber modules if:
✔ Fiber resources are sufficient
✔ Simpler installation is preferred
