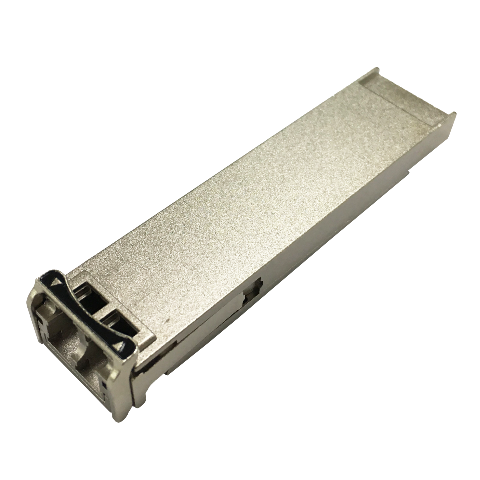

Cisco Compatible XFP-10G-MM-SR Optical Transceiver | 10GBASE-SR, LC Duplex, MMF (300m)
Product Overview
The Cisco Compatible XFP-10G-MM-SR Optical Transceiver is a high-performance 10Gbps XFP module designed for short-range transmission over multimode fiber (MMF). Operating at an 850nm wavelength, it supports distances of up to 300 meters on OM3 fiber, making it ideal for data centers, enterprise networks, and high-density environments.
As part of the XFP form factor family, this module is commonly used in legacy 10G networking equipment. Fully compatible with Cisco platforms, it offers reliable performance, seamless interoperability, and a cost-effective alternative to original optics.
Key Features
- Supports 10Gbps data rate
- 850nm VCSEL laser for multimode fiber
- Up to 300m transmission over OM3 MMF
- LC duplex connector interface
- Fully compatible with Cisco XFP ports
- Hot-pluggable XFP form factor
- Low power consumption compared to older form factors
- MSA compliant and fully tested
Technical Specifications
General Parameters
- Fiber Type: Multimode Fiber (MMF)
Optical Characteristics
- Receiver Type: PIN Photodiode
- RX Sensitivity: ≤ -11.1 dBm
Electrical & Environmental
- Power Consumption: ≤ 2.5W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
Compliance
- IEEE 802.3ae (10GBASE-SR)
Applications
- Data center short-range interconnects
- Enterprise network switching
- Server-to-switch connectivity
- Storage Area Networks (SAN)
- Legacy XFP-based network infrastructure
Why Choose This Product
The Cisco-compatible XFP-10G-MM-SR module is designed for reliable short-distance 10G connectivity in legacy environments. Compared to older form factors like XENPAK and X2, XFP offers:
- Cost-effective upgrade path
It is ideal for maintaining and optimizing existing XFP-based network deployments.
When to Choose This Module
Choose XFP-10G-MM-SR if:
✔ Distance is within 300 meters
✔ Using multimode fiber (MMF)
✔ Equipment supports XFP interface
✔ Need cost-effective short-range solution
Choose LR/ER if:
✔ Longer distance over single-mode fiber is required
