Cisco Compatible SFP-10G-SR | 10GBASE-SR SFP+ Transceiver 850nm LC MMF 300m

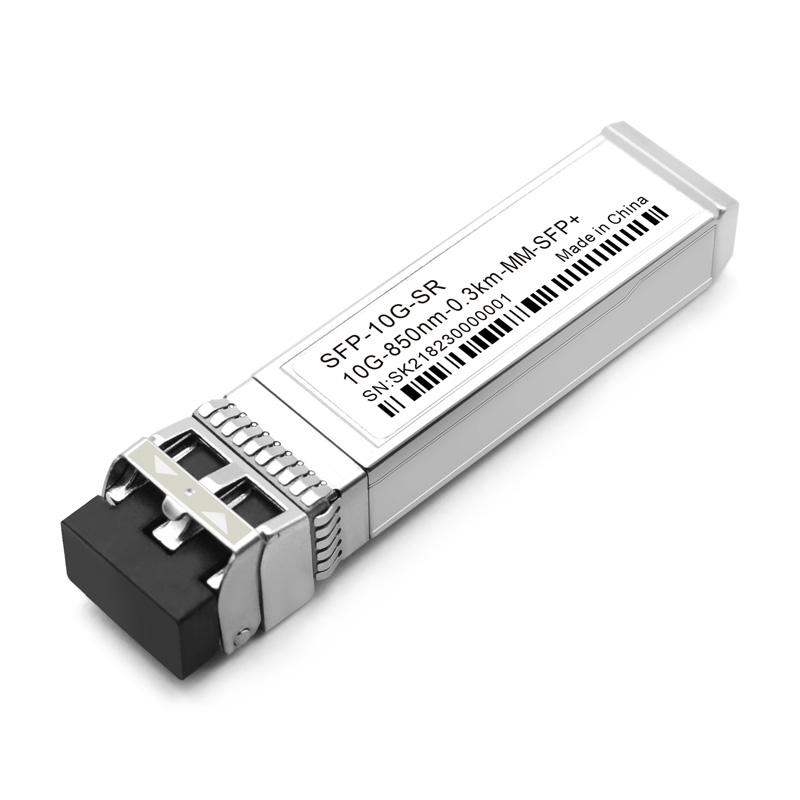

Cisco Compatible SFP-10G-SR 10GBASE-SR Optical Transceiver (LC Duplex, 850nm, 300m)

Product Overview

The Cisco compatible SFP-10G-SR optical transceiver is a high-performance, cost-effective 10Gbps module designed for short-range data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, it supports distances up to 300 meters on OM3 fiber and up to 400 meters on OM4 fiber.

This hot-swappable SFP+ module is fully compliant with industry standards and ensures seamless interoperability with Cisco switches, routers, and other networking equipment. It is an ideal solution for data centers, enterprise networks, and high-speed interconnect applications requiring reliable 10G connectivity.

Key Features

Supports data rates up to 10Gbps

850nm VCSEL laser for high-speed transmission

Maximum reach of 300m (OM3) / 400m (OM4)

LC Duplex connector for multimode fiber

Fully compliant with SFP+ MSA and IEEE 802.3ae 10GBASE-SR

Hot-pluggable for easy installation and maintenance

Low power consumption (<1W)

Built-in Digital Diagnostic Monitoring (DDM/DOM)

100% compatible with Cisco devices (coding customizable)

RoHS compliant and laser safety Class 1 certified

Technical Specifications

Parameter	Specification
Form Factor	SFP+
Data Rate	10Gbps
Wavelength	850nm
Fiber Type	Multimode Fiber (MMF)
Max Distance	300m (OM3), 400m (OM4)
Connector	LC Duplex
Transmitter Type	VCSEL
Receiver Type	PIN Photodiode
Output Power	-7.3 ~ -1 dBm
Receiver Sensitivity	≤ -11.1 dBm
Extinction Ratio	> 3 dB
Power Consumption	< 1W
Operating Temperature	0°C to 70°C (Commercial)
Storage Temperature	-40°C to 85°C
Protocols Supported	IEEE 802.3ae, SFP+ MSA
Digital Diagnostics	Yes (DDM/DOM Supported)

Applications

10G Ethernet data center interconnects

Enterprise core and aggregation switches

Storage Area Networks (SAN)

High-speed server-to-switch connectivity

Cloud computing infrastructure

Telecom and ISP network deployments

Compatibility

This module is fully compatible with a wide range of Cisco equipment and can be custom-coded for other major brands such as Huawei, Juniper, HPE, Arista, and more.

Why Choose This SFP-10G-SR Module?

Cost-effective alternative to original Cisco optics

Strict quality testing for guaranteed performance

Fast delivery and stable supply for bulk orders

OEM/ODM support including custom labeling and coding

Reliable compatibility across multi-vendor environments

Ordering Information

Part Number	Description
SFP-10G-SR-C	10GBASE-SR SFP+ Transceiver, LC, MMF, 300m
