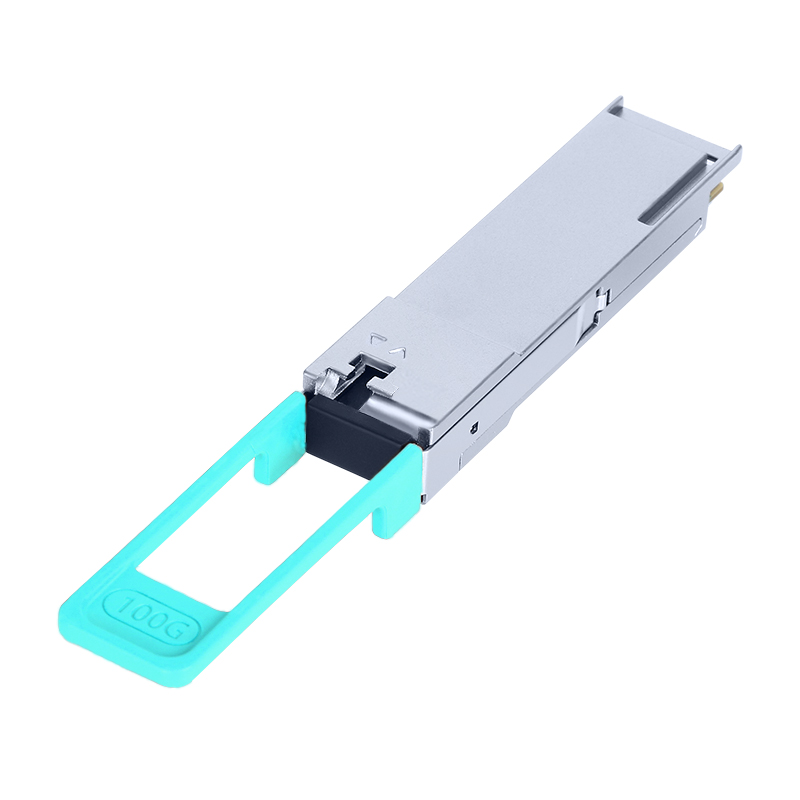

Cisco Compatible QSFP-100G-B80U4 & QSFP-100G-B80D4
100GBASE BiDi QSFP28 Transceiver Pair | 80km LC Simplex SMF | Upstream & Downstream
Product Overview
The Cisco compatible QSFP-100G-B80U4 and QSFP-100G-B80D4 are a matched pair of ultra-long-reach 100GBASE BiDi QSFP28 optical transceivers designed for 100 Gigabit Ethernet transmission over a single strand of single-mode fiber (SMF).
Utilizing advanced BiDi (Bidirectional) optical transmission technology, these modules support simultaneous transmit and receive communication through one simplex LC fiber, significantly reducing fiber infrastructure requirements and deployment costs for long-distance optical networks.
The transceiver pair supports transmission distances up to 80 kilometers over standard single-mode fiber, making them ideal for:
- Carrier and telecom backbone networks
- Metro and regional optical transport
- Long-distance data center interconnects (DCI)
- ISP core infrastructure
- Enterprise WAN connectivity
- Fiber-constrained network environments
- Cloud and edge computing infrastructure
The QSFP-100G-B80U4 functions as the upstream module, while the QSFP-100G-B80D4 functions as the downstream module. Both modules must be used together as a matched BiDi transceiver pair.
Key Features
- Supports 100GBASE BiDi Ethernet
- QSFP28 hot-pluggable form factor
- Single-fiber bidirectional optical transmission
- LC simplex optical connector
- Up to 80km transmission over SMF
- Matched upstream/downstream wavelength pair
- Reduced fiber infrastructure requirements
- Integrated Digital Optical Monitoring (DOM)
- Carrier-grade optical performance
- Low power consumption
- Fully compliant with QSFP28 MSA standards
- 100% tested for Cisco compatibility
Transceiver Pair Information
Part Number | Description |
|---|---|
QSFP-100G-B80U4 | 100G BiDi QSFP28 Transceiver, 80km Upstream, LC Simplex SMF |
QSFP-100G-B80D4 | 100G BiDi QSFP28 Transceiver, 80km Downstream, LC Simplex SMF |
These modules are designed to operate together as a BiDi optical pair.
Compatible Cisco Platforms
The Cisco compatible QSFP-100G-B80U4 and QSFP-100G-B80D4 are compatible with a wide range of Cisco networking platforms including:
Cisco Nexus Series
- Cisco Nexus 3232C
- Cisco Nexus 93180YC-EX
- Cisco Nexus 9336C-FX2
- Cisco Nexus 9364C
- Cisco Nexus 9500 Series
Cisco Catalyst Series
- Cisco Catalyst 9500 Series
- Cisco Catalyst 9600 Series
Cisco ASR & NCS Series
- Cisco ASR 9000 Series
- Cisco NCS 540 Series
- Cisco NCS 5500 Series
Cisco UCS Platforms
- Cisco UCS Fabric Interconnect 6400 Series
- Cisco UCS X-Series
- Cisco UCS C-Series Rack Servers
Cisco MDS Storage Networking
- Cisco MDS 9700 Series
Compatibility may vary depending on Cisco hardware model and software version.
Technical Specifications
Parameter | QSFP-100G-B80U4 | QSFP-100G-B80D4 |
|---|---|---|
Form Factor | QSFP28 | QSFP28 |
Data Rate | 100Gbps | 100Gbps |
Optical Type | BiDi | BiDi |
Fiber Type | Single-Mode Fiber (SMF) | Single-Mode Fiber (SMF) |
Connector Type | LC Simplex | LC Simplex |
Reach | 80km | 80km |
Transmission Direction | Upstream | Downstream |
DOM Support | Yes | Yes |
Hot Swappable | Yes | Yes |
Compliance | QSFP28 MSA | QSFP28 MSA |
Product Advantages
Ultra-Long 80km 100G Connectivity
Supports high-speed 100GbE transmission over extremely long distances.
Single-Fiber Optical Architecture
BiDi technology reduces fiber usage by enabling bidirectional communication over one fiber strand.
Reduced Infrastructure Costs
Minimizes cabling complexity and fiber deployment expenses.
Carrier-Grade Reliability
Designed for telecom, ISP, metro, and long-haul networking applications.
Proven Cisco Compatibility
Fully tested with Cisco switches, routers, and transport platforms.
Typical Applications
- Long-haul carrier networks
- Telecom backbone infrastructure
- Metro and regional optical transport
- ISP core networking
- Long-distance data center interconnects
- Enterprise WAN deployments
- Cloud infrastructure networking
- High-capacity optical uplinks
Quality Assurance
Every Cisco compatible QSFP-100G-B80U4 and QSFP-100G-B80D4 module undergoes:
- Optical performance testing
- Cisco interoperability verification
- DOM functionality validation
- Wavelength calibration testing
- Reliability and aging stress testing
Ordering Information
Part Number | Description |
|---|---|
QSFP-100G-B80U4 | Cisco Compatible 100G BiDi QSFP28, LC Simplex SMF, 80km Upstream |
QSFP-100G-B80D4 | Cisco Compatible 100G BiDi QSFP28, LC Simplex SMF, 80km Downstream |
FAQ
Do QSFP-100G-B80U4 and QSFP-100G-B80D4 need to be used together?
Yes. These modules are designed as a matched BiDi optical pair.
What transmission distance is supported?
They support up to 80 kilometers over single-mode fiber.
What connector type do they use?
Both modules use LC simplex connectors.
What is the advantage of BiDi optics?
BiDi optics reduce fiber usage and deployment costs by using a single fiber strand for bidirectional communication.
Do these modules support DOM monitoring?
Yes. Digital Optical Monitoring (DOM) is supported.
