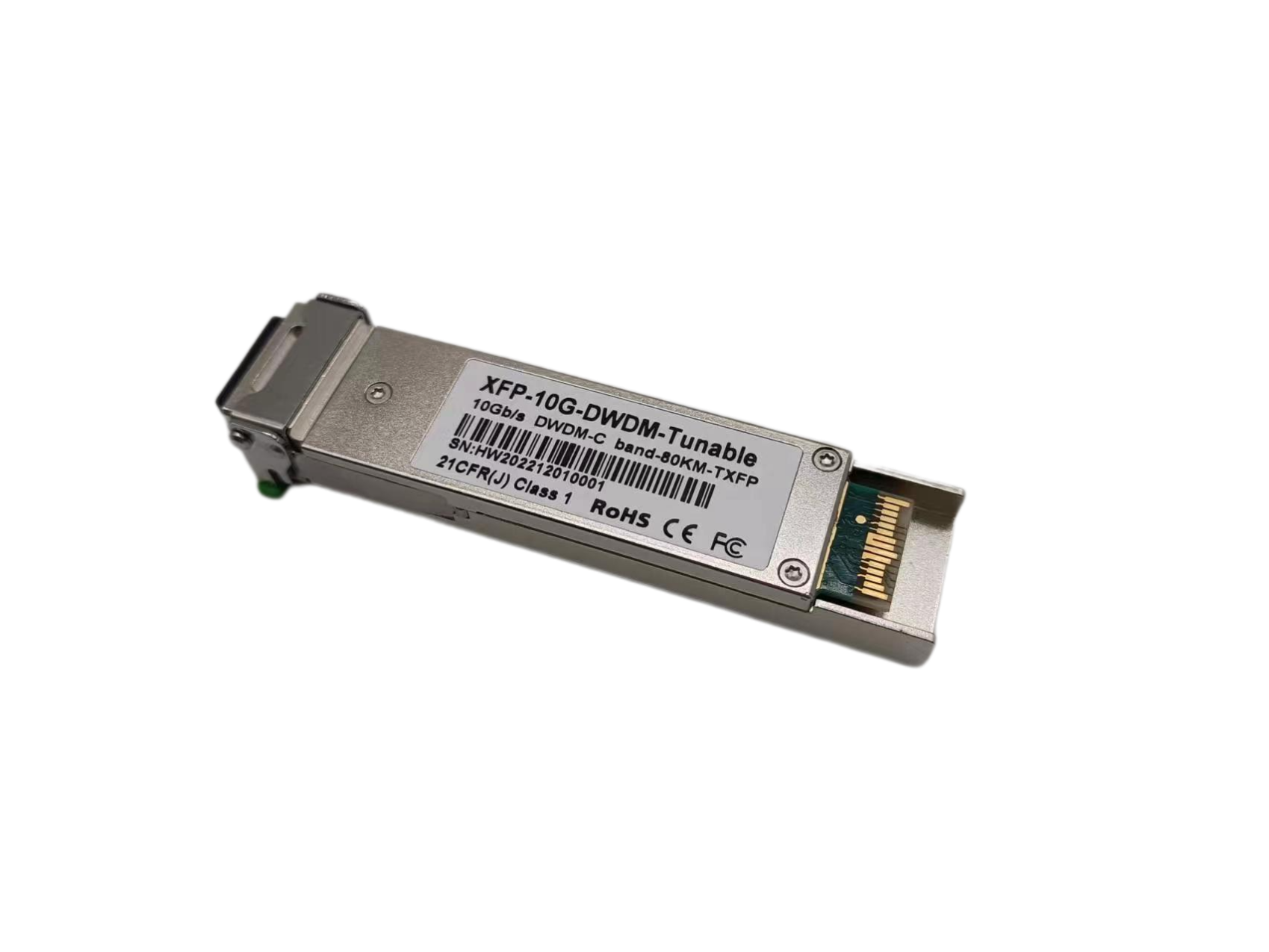

Cisco Compatible DWDM-XFP-Tunable-80 10GBASE Tunable DWDM XFP Optical Transceiver (LC Duplex, C-Band, 80km)
Product Overview
The Cisco compatible DWDM-XFP-Tunable-80 optical transceiver is a high-performance 10Gbps module designed for flexible Dense Wavelength Division Multiplexing (DWDM) applications over single-mode fiber (SMF). Featuring tunable wavelength capability across the ITU-T C-Band grid, it allows dynamic channel selection, reducing inventory complexity and enabling rapid deployment in DWDM systems.
With a transmission reach of up to 80 kilometers, this XFP module is ideal for telecom backbone networks, metro aggregation, and long-haul data center interconnect (DCI) environments where flexibility and scalability are critical.
Tunable Channel Range
- Supports full C-Band DWDM range (~1528nm to 1565nm)
- Compatible with ITU-T 100GHz channel spacing (50GHz optional depending on version)
- Typical tunable channels: CH17 – CH61 (191.7THz – 196.1THz)
- Software-configurable wavelength selection
Key Features
- Supports data rates up to 10Gbps
- Tunable DWDM technology for flexible wavelength selection
- Operates across ITU-T C-Band DWDM grid
- Transmission distance up to 80km over SMF
- Compatible with DWDM MUX/DEMUX systems
- Compliant with XFP MSA and IEEE 802.3ae
- Hot-pluggable XFP form factor
- Built-in Digital Diagnostic Monitoring (DDM/DOM)
- Reduces spare inventory by replacing multiple fixed DWDM modules
- High-power optical design for long-haul transmission
- 100% compatible with Cisco platforms (custom coding available)
- RoHS compliant and Class 1 laser safety certified
Technical Specifications
| |
|---|
| |
| |
| Tunable C-Band (≈1528–1565nm) |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
Applications
- Tunable DWDM optical transmission systems
- Telecom backbone and core networks
- Metropolitan Area Networks (MAN)
- Data center interconnect (DCI) over long distances
- Rapid network deployment and provisioning
- High-capacity multi-channel optical transport
Compatibility
This module is fully compatible with Cisco switches and routers supporting XFP interfaces and can be custom-coded for Huawei, Juniper, and other major networking platforms. It integrates seamlessly with standard DWDM MUX/DEMUX systems.
Why Choose This DWDM-XFP-Tunable-80 Module?
- One module replaces multiple fixed DWDM wavelengths
- Simplifies inventory and network planning
- Ideal for dynamic and scalable DWDM deployments
- Supports long-haul transmission up to 80km
- Fully tested for compatibility and performance
- OEM/ODM support including labeling and coding customization
- Reliable supply for telecom and enterprise projects
Ordering Information
| |
|---|
| 10G Tunable DWDM XFP, LC, SMF, 80km |
