ProductsCisco C8300-2N2S-4T2X Edge Router
C8300-2N2S-4T2X
CISCO Routers

Cisco C8300-2N2S-4T2X Edge Router

Cisco C8300-2N2S-4T2X, Catalyst 8300 router, Cisco SD-WAN edge router, enterprise WAN router Cisco, modular edge router, branch network router solution

Contact Us

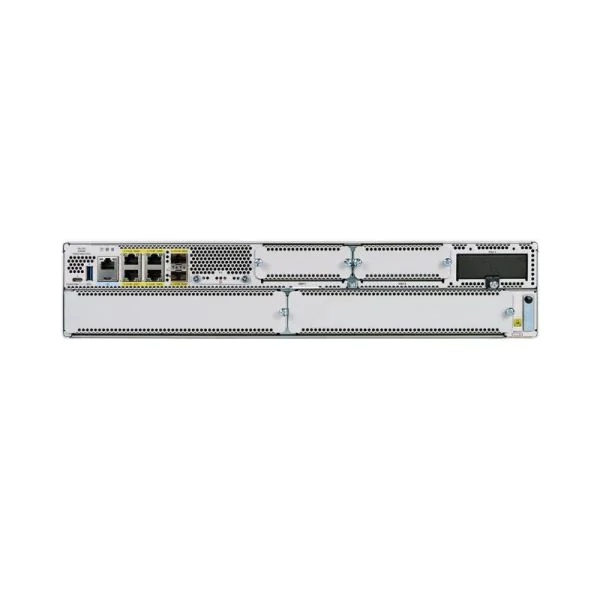

🚀 Cisco C8300-2N2S-4T2X Catalyst 8300 Series Edge Platform Router

Factory-Sealed New in Original Box (FSB) with 1 Year Replacement Warranty


🔗 Product Overview

The Cisco C8300-2N2S-4T2X is a high-performance enterprise edge router from the Cisco Catalyst 8300 Series.
Built for SD-WAN, WAN edge, and branch aggregation, it delivers secure connectivity, modular scalability, and high-speed routing performance for modern enterprise networks.
👉 Ideal for branch WAN, SD-WAN deployments, and hybrid cloud connectivity


🔥 Why This Router Is in High Demand

✔ Need flexible modular WAN edge router ✔ Deploying SD-WAN with secure connectivity ✔ Require 10G uplinks with scalable interfaces
👉 C8300 = modular design + SD-WAN ready + enterprise security


⚡ Traditional ISR vs Catalyst 8300

Type
Performance
Scalability
Use Case
ISR 4000 Series
Medium
Limited
Traditional branch
Catalyst 8300
High
Modular
SD-WAN / WAN edge
👉 Catalyst 8300 = next-gen WAN + cloud-ready architecture


🧠 Key Features

  • Up to ~19.7 Gbps forwarding throughput
  • IPsec throughput up to ~18 Gbps (clear text)
  • SD-WAN IPsec throughput ~5 Gbps (IMIX)
  • 2× 10G SFP+ + 4× 1G RJ45 ports
  • Modular design: 2× SM + 2× NIM + 1× PIM slots
  • Supports up to 1.6M IPv4 routes (expandable)
  • Integrated security (ACL, NAT, firewall, VPN)
  • Cisco IOS XE operating system


🏗️ High-Value Application Scenarios

1. Enterprise WAN Edge

  • High-performance routing at enterprise edge
  • Reliable WAN aggregation

2. SD-WAN Deployment

  • Cloud-managed WAN infrastructure
  • Application-aware routing and optimization

3. Branch Office Connectivity

  • Secure branch networking
  • Scalable interface expansion

4. Hybrid Cloud & Data Center Access

  • Seamless cloud connectivity
  • High-speed secure transport


💡 Why Choose C8300-2N2S-4T2X?

👉 Traditional ISR routers:
  • Fixed interfaces
  • Limited scalability

👉 With C8300-2N2S-4T2X:
✔ Modular architecture (SM + NIM expansion) ✔ High-performance SD-WAN routing ✔ Integrated security + encryption
✅ Best for enterprises upgrading to SD-WAN and cloud networking


🧩 Complete Network Solution

✅ Core Router

  • Cisco C8300-2N2S-4T2X

✅ WAN & SD-WAN

  • Secure WAN edge
  • SD-WAN overlay deployment

✅ Connectivity

  • 1G / 10G WAN interfaces
  • Modular expansion capability
👉 Edge Router = flexibility + security + performance


📊 Technical Specifications

Parameter
Specification
Model
C8300-2N2S-4T2X
Type
Edge Router
Form Factor
2RU rack-mount
Interfaces
2× 10G SFP+ + 4× 1G RJ45
Slots
2× SM + 2× NIM + 1× PIM
Forwarding Throughput
~19.7 Gbps
IPsec Throughput
Up to ~18 Gbps
SD-WAN IPsec (IMIX)
~5 Gbps
DRAM
8 GB (expandable)
Storage
16 GB SSD
Max IPv4 Routes
~1.6M (upgradable)
OS
Cisco IOS XE
Operating Temp
0°C to 40°C


❓ FAQ

Q1: What is C8300-2N2S-4T2X used for? It is used for enterprise WAN edge routing, SD-WAN, and secure branch connectivity.

Q2: Does it support SD-WAN? Yes, it is fully optimized for Cisco SD-WAN deployments.

Q3: Is it modular? Yes, it supports SM, NIM, and PIM modules for flexible expansion.

Q4: What makes it different from ISR routers? It offers higher performance, modular scalability, and SD-WAN integration.


📈

Cisco C8300-2N2S-4T2X, Catalyst 8300 router, Cisco SD-WAN edge router, enterprise WAN router Cisco, modular edge router, branch network router solution


🚀 Get a Quote for Your WAN Upgrade

👉 Planning to deploy SD-WAN or upgrade your WAN edge?
✔ High-performance routing ✔ Secure SD-WAN architecture ✔ Flexible modular expansion

Contact us now for pricing and availability.
