Arista Compatible Transceivers

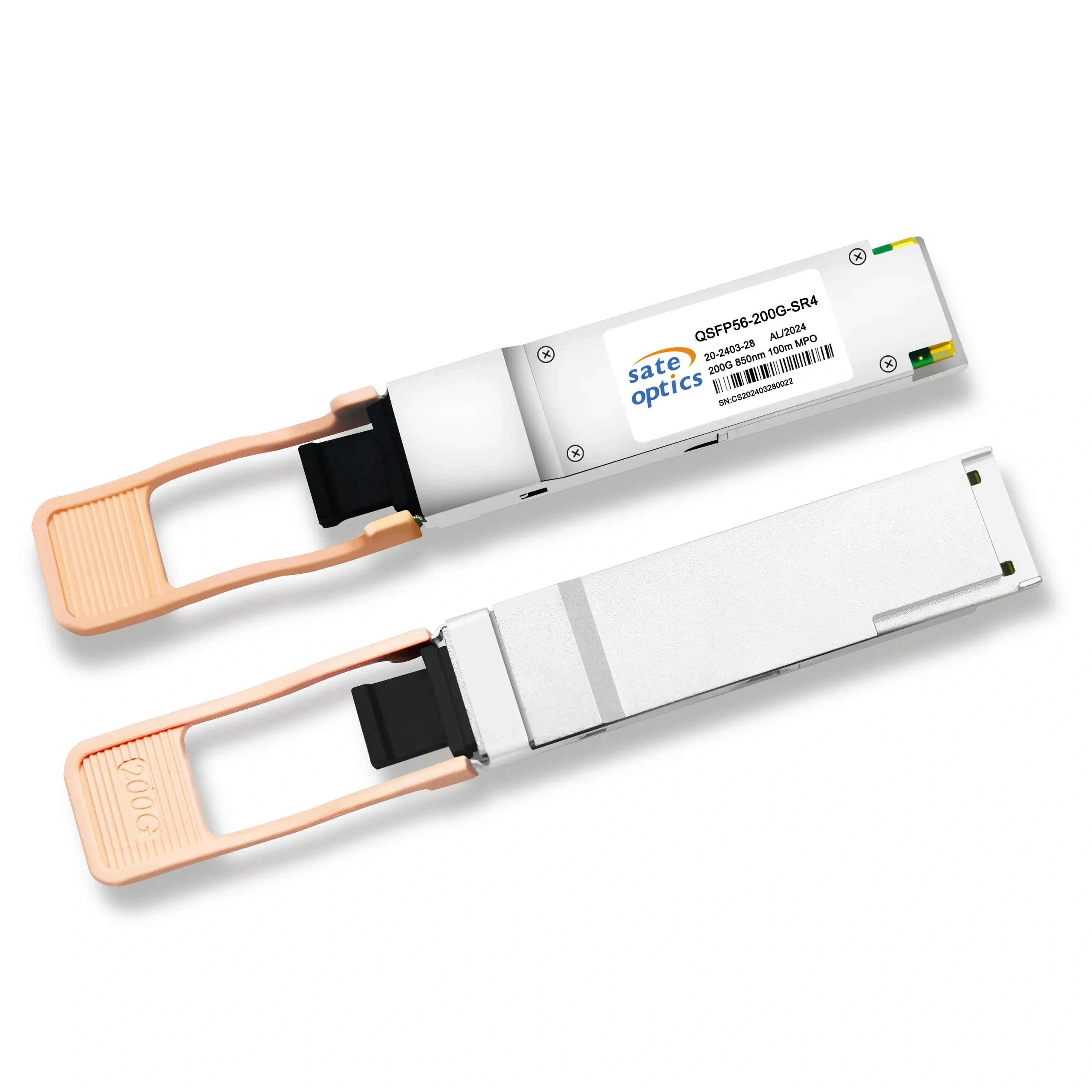

Arista QSFP-200G-SR4 Compatible QSFP56 Transceiver
Arista QSFP-200G-SR4 compatible, Arista compatible QSFP56 module, 200GBASE-SR4 QSFP56 for Arista, 850nm 100m transceiver, Arista compatible optical module

Arista QSFP-200G-SR4 Compatible QSFP56 Transceiver – 200GBASE-SR4 Optical Module (MMF, 100m)
Product Overview
The Arista QSFP-200G-SR4 compatible QSFP56 transceiver delivers 200G connectivity over multimode fiber for short-reach links up to 100m over OM4.
It is designed for Arista 7060X, 7280R, 7388 and 7800R series switches and other Arista platforms, and it uses parallel optics with an MPO connector for 200GBASE-SR4 links.
Key Features of Arista QSFP-200G-SR4
- 200GBASE-SR4 200G transmission over multimode fiber
- QSFP56 hot swappable form factor
- MPO connector for parallel optics links
- Up to 100m transmission over OM4 multimode fiber
- Integrated Digital Optical Monitoring (DOM)
- Low power consumption under 5W
Technical Specifications

Parameter | Specification |
Model | Arista QSFP-200G-SR4 Compatible |
Form Factor | QSFP56 |
Data Rate | 200Gbps |
Optical Standard | 200GBASE-SR4 |
Optical Technology | Parallel Optics |
Fiber Type | Multi-Mode Fiber (MMF) |
Wavelength | 850nm |
Max Distance | 100m (OM4) |
Connector Type | MPO |
DOM Support | Yes |
Power Consumption | < 5W |
Hot Swappable | Yes |
Operating Temperature | 0°C to 70°C |
Compliance | IEEE 802.3bs, QSFP56 MSA, RoHS |
Compatibility | Arista 7060X, 7280R, 7388 and 7800R series switches and other Arista platforms |
Why Choose a Compatible Arista Module
- Guaranteed Compatibility: Programmed and tested for Arista equipment, without the OEM price.
- Full Feature Support: DDM monitoring and full functionality on Arista systems.
- Tested Reliability: Each module is tested for stable performance before shipment.
- Cost-Effective for Production: A dependable, lower-cost choice for mission-critical networks.
High-Value Application Scenarios
Data Center Interconnects
Links data center rows over multimode fiber for short-reach 200G connections.
Enterprise Access and Aggregation
Adds high-bandwidth 200G uplinks to enterprise aggregation switches.
Campus Networks
Extends 200G connectivity across campus buildings on OM4 multimode fiber.
High-Density 200G Deployments
Deploys high-density 200G links up to 100m in spine-leaf fabrics.
Compatibility
The Arista QSFP-200G-SR4 is compatible with Arista equipment that specifies the QSFP-200G-SR4, including Arista 7060X, 7280R, 7388 and 7800R series switches and other Arista platforms.
FAQ
Is the Arista QSFP-200G-SR4 compatible with Arista switches?
Yes. It is programmed and tested for Arista 7060X, 7280R, 7388 and 7800R series switches and other Arista platforms.
What transmission distance does the Arista QSFP-200G-SR4 support?
Up to 100m over OM4 multimode fiber with an MPO connector.
Which Arista systems support this module?
This module is programmed and tested for Arista 7060X, 7280R, 7388 and 7800R series switches, and it also works in other Arista platforms that accept QSFP56 optics.
Does it support DOM monitoring?
Yes. It supports DOM monitoring for real-time link monitoring on Arista systems.
🚀 Get a Quote for Your 200G Deployment
Order the Arista QSFP-200G-SR4 compatible module from CSW Optics. Send us your required quantity and deployment details.
Contact us now for pricing and availability.
